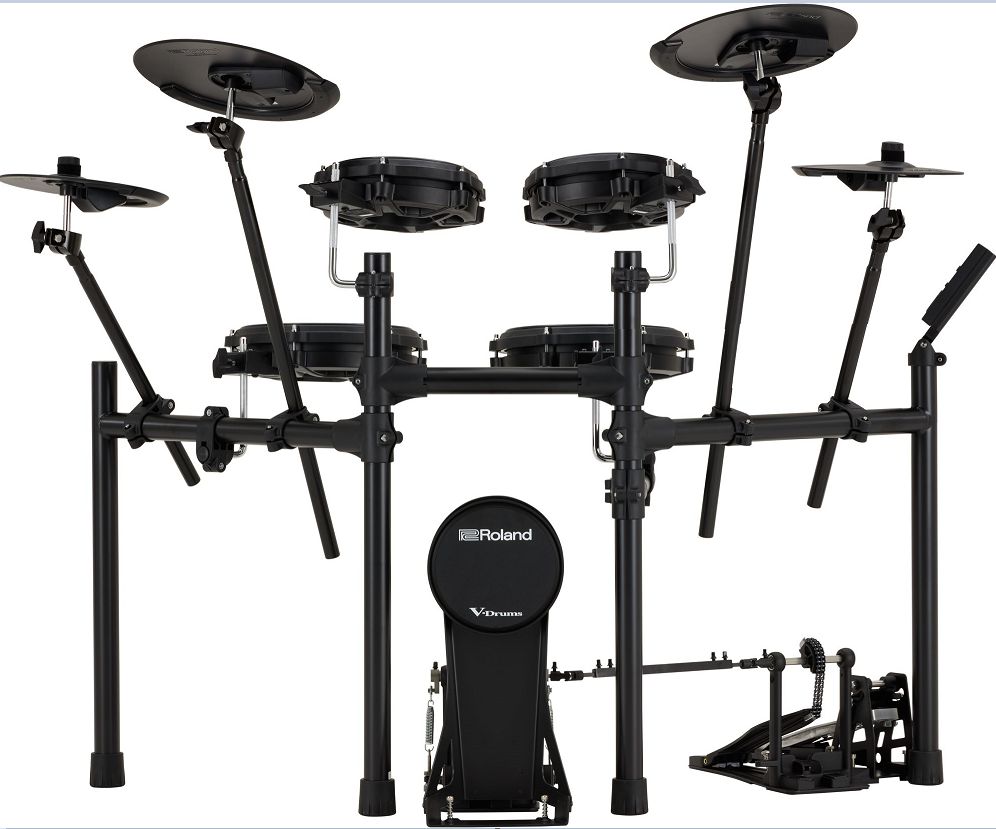

Roland TD-07KV2

Drum sound module: TD-07 × 1
Kick: KD-10 × 1
Snare: PD-10H × 1
Hi-hat: CY-5 × 1
Hi-hat control pedal: FD-9
Tom 1: PD-8H × 1 ※2
Tom 2: PD-8H × 1 ※2
Tom 3: PD-10H × 1 ※2
Crash 1: CY-8 × 1
Crash 2: CY-5 × 1
Ride: CY-8×1
Drum stand: Four-post type rack stand×1
- Drum kits
50 (Preset: over 20)
-Instruments
143
-Effect Types
Pad Equalizer: each pad
Overhead Mic Simulator
Room
Multi-Effects: 1 system, 30 types
- Coach functions (6 modes)
Time check (easy)
Time check (hard)
Quiet count
Auto up/down
Change-up
BLAST BEAST
- Metronome
Tempo (20--260)
Rhythm type (5 types)
Sounds (15 types)
-Bluetooth
Supported standards: Bluetooth Ver 4.2
Supported profile: A2DP (Audio), GATT (MIDI over Bluetooth Low Energy)
Codec: SBC (Support to the content protection of the SCMS-T method)
- Display
16 characters x 2 lines LCD (with backlight)
- Connectors
OUTPUT/PHONES jack: Stereo miniature phone type
MIX IN jack: Stereo miniature phone type
USB COMPUTER port: USB B type
TRIGGER INPUT connector: DB-25 type (Kick, Snare, Tom 1, Tom 2, Tom 3, Hi-hat, Crash 1, Crash 2, Ride, Hi-hat control)
-USB COMPUTER
Speed: Hi-speed USB
Driver mode: Generic, Vender
Protocol: USB MIDI, USB Audio *3
-USB Audio
Sampling Rate (original): 44.1 kHz
Sampling Rate (with sampling rate converter): 96 kHz, 48 kHz
Record: 2 channels
Playback: 2 channels
-Power supply
AC adaptor (DC 12 V)
- Current draw
250 mA
-Power consumption when in off mode (when the power automatically turns off)
0.1 W

【Size and Weight】
-Dimensions
1,300(W) x 1,100 (D) x 1,200 (H) mm
51-3/16(W) x 43-5/16 (D) x 47-1/4 (H) inches
(including sound module, kick pad, kick pedal and drum throne)
-Weight
22.3kg/49 lbs 2 oz

【Other】
- Accessories
Setup Guide
Leaflet "USING THE UNIT SAFELY"
AC adaptor
Special connection cable
Drum key
